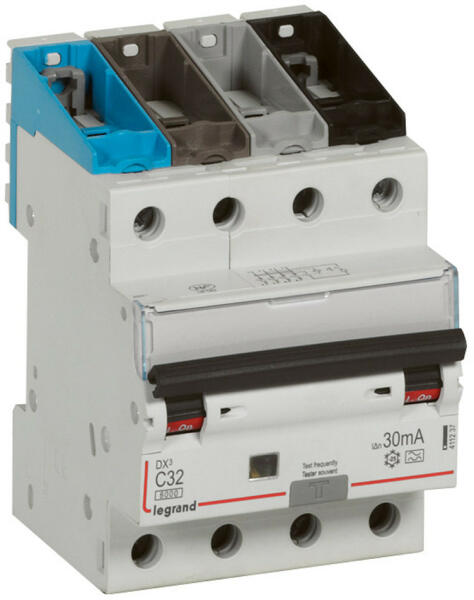

Caracteristici tehnice4-pole - 400 V~4-module RCBOs are compatible with prong-type and fork type supply busbars7-module RCBOs are compatible with prong-type supply busbars onlyA Type 30 mAC curveNominal rating In : 32 ANumar de module : 4Caracteristici generaleRCBOs DX³ 6000 - 10 kA - residual current circuit breakers from 10 A to 63 A - AC, A and F typesConform to IEC 61009-1, IEC 62423 (F type)Tensiune independent trippingBreaking capacity:6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, 2 and 4-poleAC type : detect AC component faultsA type : detect AC and DC component faultsF type (High immunity) : detect AC and pulsating DC residual currents. Enhanced immunity to unwanted tripping in disturbed environments. Detection of high frequency fault currentsCan be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
